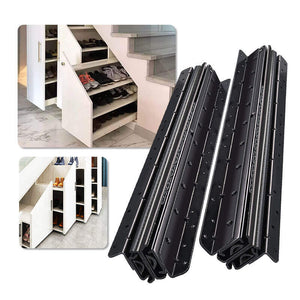

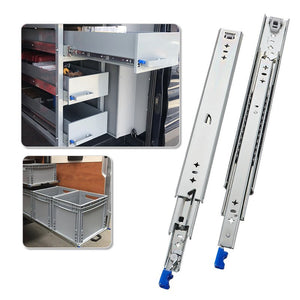

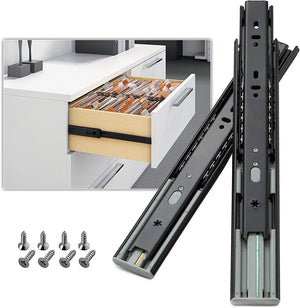

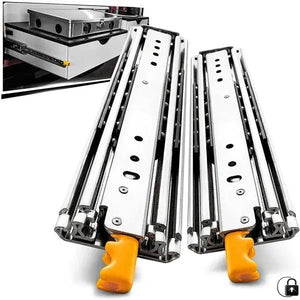

Aolisheng Drawer slide rail installation method

Aolisheng Drawer slide rail installation method


After purchasing drawer guides, industrial guides and other products, many customers don’t know how to use them correctly. Maybe they can use them, but they are not very standardized, which leads to many problems in the process of using them. For the slide rail, we must master its installation and disassembly methods. If these operations are not in place, the service life of our furniture will be reduced. I think these are not what we all want to see. For these two operations In the use link, Aolisheng summarized some methods for everyone for your reference.

1. First determine the drawer gap. According to the product drawing of the steel ball slide rail or measure the actual thickness of the slide rail, the width of the drawer can be obtained by subtracting the thickness of the drawer slide rail from the width of the cabinet. Generally, the material is 1.2 *1.2*1.5 The thickness of the three-section slide rail drawer guide is 12.7mm with a positive tolerance, so we would recommend leaving a gap of 13mm on one side as shown in the figure below to ensure that the slide rail can be pushed and pulled freely. But not all 45-wide slides on the market are the same, because we found that some manufacturers on the market use thinner materials, such as 0.8 or even 0.6mm, in order to achieve parity, which ultimately leads to the overall thickness of the slide. It is only 12.3mm or even 12mm. Therefore, you must confirm with the manufacturer or obtain the final processing size from the actual thickness of the product to ensure that the furniture drawer can be pushed and pulled freely.

2. Select the length of the slide rail according to the length of the drawer, and determine the screw mounting hole position on the drawer and the cabinet side panel, and fix the screw hole position according to the fixed rail (outer rail) given by the manufacturer's drawings (there are various on the market). For all kinds of slide rails, the hole positions of the steel ball slide rails produced by each manufacturer are basically different, so you must process them according to the drawings of the slide rail manufacturer you purchased), or install the screw holes according to the actual sample size. In order to meet the demand, furniture factories can use machinery to arrange holes in mass production (some manufacturers have holes that are not in the 32 series, and furniture factories need to pay attention). If the personal consumption is small, you can use the manual method of drawing and marking holes to locate. Pay attention to ensure that the positioning is consistent up and down, otherwise the sliding rail will not be smoothly pushed and pulled. Set the screw mounting holes of the fixed rail on the side panel of the cabinet, and set the screw mounting holes of the movable rail on the side panel of the drawer.

3. After the holes are arranged, pick up the slide rail and pull the slide rail clutch by hand, pull the movable rail (inner rail) outwards, and complete the separation from the fixed rail (outer rail), and align the two fixed rails (outer rail) The holes in the row are screwed to the side panels on both sides of the cabinet, and then the two movable rails are locked on the side panels on both sides of the drawer according to the hole positions in the row.

4. After completing the above steps, then align the ends of the movable rails (inner rails) on both sides of the drawer side panels with the ends of the fixed rails (middle rails), and then gently push inward, you will hear a light When the card is clicked, it means that the movable rail and the fixed rail have been linked, and the drawer can be pushed and pulled freely.


In many families, it is usually encountered that the drawer guide is broken, and the removal of the drawer guide also requires a certain method, and different methods of disassembly are required according to different drawers. Only use the right method and method. In order to achieve a perfect disassembly process, otherwise it will damage the track or drawer.

Usually everyone has this question: The drawer slide at home is broken and I want to remove it, but I don't know how to deal with it?

How to disassemble the pumping rail answer one:

First of all, you need to determine what kind of slide rail is in your home, such as three-section rails, industrial rails. If it is a three-section track, the cabinet should be gently pulled out first. When you want to pull it upside down, you must carefully check whether there is a sharp object on both sides of the cabinet, usually on both sides of the cabinet. Have. (This kind of pointy thing is usually called a plastic bullet card) Then try to push the plastic bullet card thing twice down. When you press it, you can understand the crisp sound, and this time The description opens. In this way, the cabinet can be easily taken out. When removing, make sure that the cabinet is kept in a horizontal position. Do not use too much force, otherwise the tracks on both sides will be damaged. After adjustment, install it to a suitable position.

How to remove the drawer track Answer 2:

First, the cabinet should be easily pulled out, but it must be kept in a stable state when it is pulled out, so that it will not damage the cabinet and the track when it is pulled out. Check if there are sharp buttons on both sides of the cabinet. If you see it, try to push it down with your hands. If you can press it, you will hear a clicking sound. At this time, take the cabinet out. But be sure not to press too hard when you press it. If you don’t understand the press, something is stuck and you need to check it. After pressing down, take it out gently and keeping it flat so that it will not cause too much damage to the track. After pulling it out again, check whether the drawer rail slide is due to deformation or other conditions. If it is deformed, usually adjust the position of the deformation, install it and fix it, and then place it in the original way. Into it, this can easily complete the disassembly of the drawer guide rail and the big problems of installation.
