Maximum bearing capacity 150lb, 30-year service life:All three sections of rails are made of 1.5mm thick Q235 thickened steel plate, and high-strength, high-density high-quality cold-rolled steel. It can support heavy load storage without deformation, and the bottom is equipped with a limited rubber pad, which is made of ABS plastic, with good wear resistance and good impact resistance.
Double Anti-rust: The surface of the slide rail is treated with a galvanized blue sealing process, which isolates the slide rail from direct contact with air and water, and increases oxidation resistance and corrosion resistance.

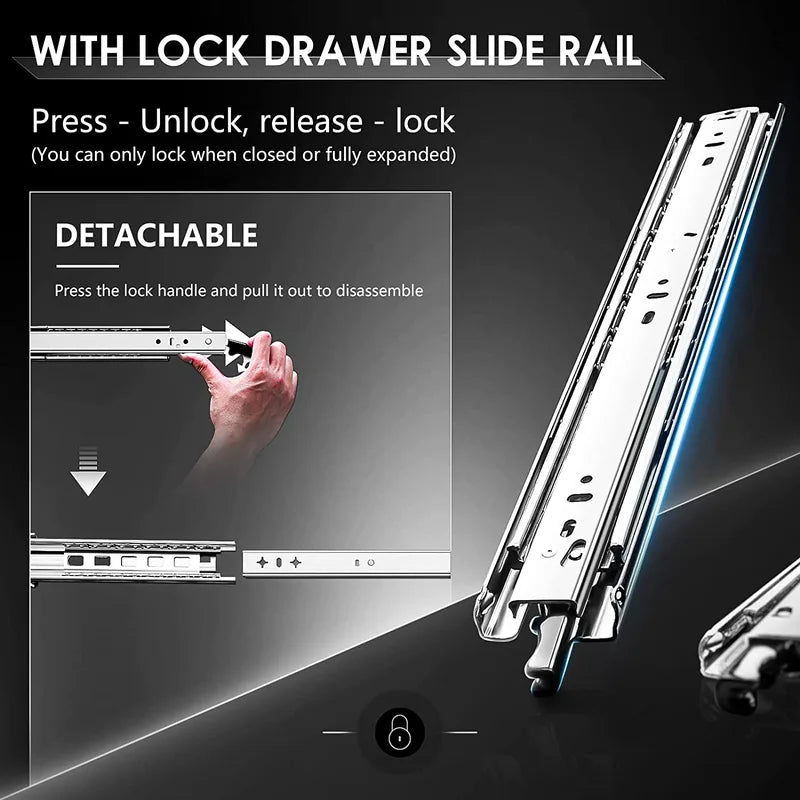

Lock Drawer Slides, Removable: Simultaneously press the black handles on both sides to lock and unlock the drawer, it can be locked when fully closed, and can be locked when fully opened to prevent sliding.
Installation Requirements: Size: 11.8"(300mm), fully extension length: 23.5"(597mm), installation clearance: left: 0.76" (19.4mm), right: 0.76" (19.4mm). Approximate length of the blue handle: 1.18" (30mm). You can choose the size of the rail according to the depth of the drawer. The length of the rail should be less than or equal to the drawer.
- Material: Q235 Cold-Rolled Steel
- Installation Method: Side Mount
- Load Capacity: 150 lbs/68 kg Tips:The load-bearing capacity is 220KG under 18 inches, and the load-bearing capacity decreases by 3.5KG for every 2 inches above 18 inches.
- Installation Thickness: 12.7+0.2mm

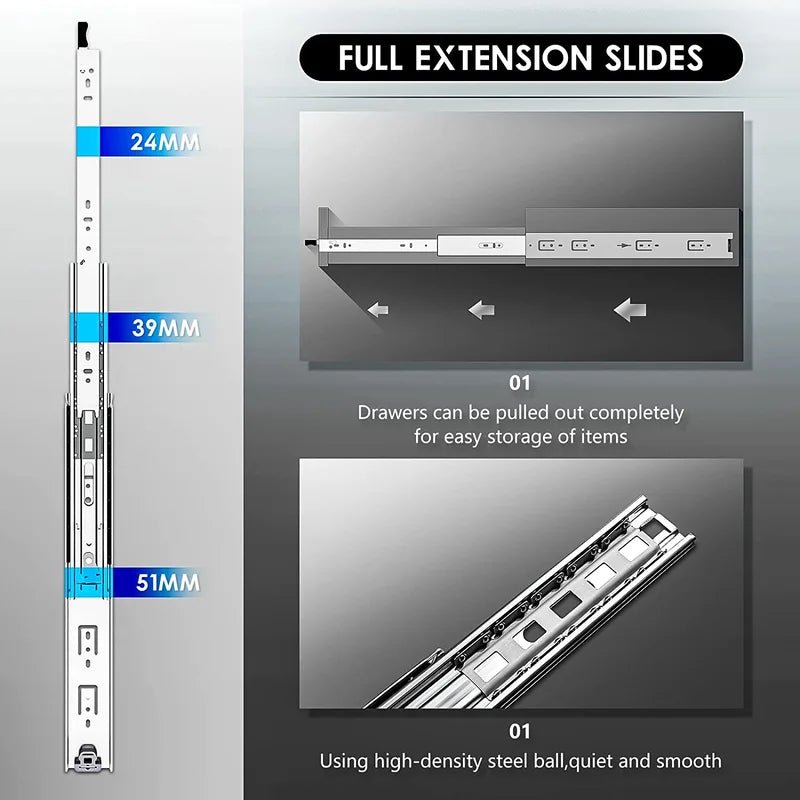

- Black Slide Style: 3 Folds Full Extension, With Lock

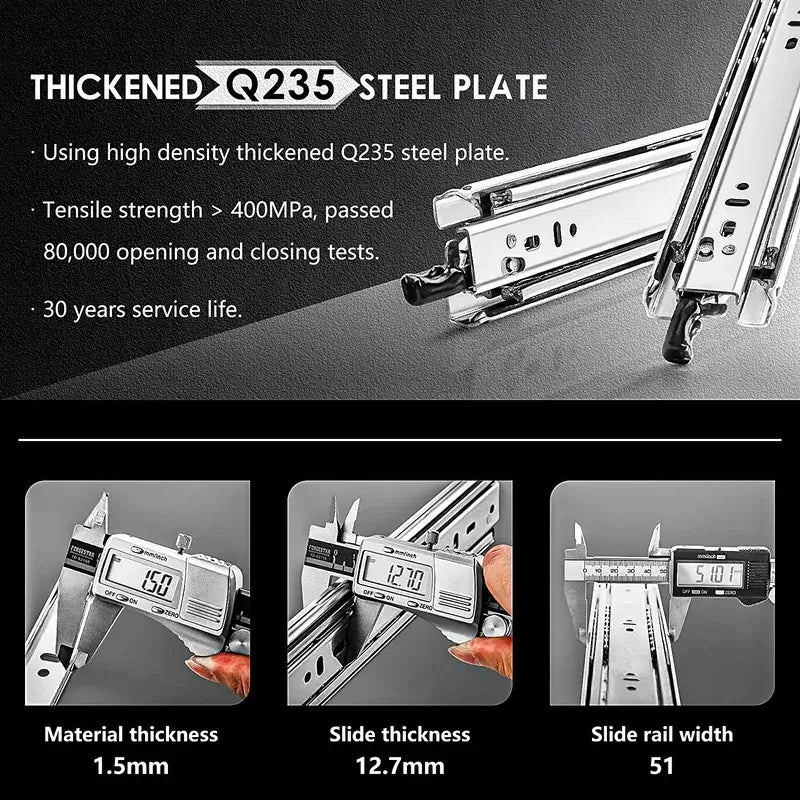

- Plate Thickness: Outer Slider (1.5mm) / Middle Slider (1.5mm) / Inner Slider (1.5mm)
- Scope of Application:shelves, cabinets, industrial drawers, RVs, trucks, vending machines, and more.
Notes For Slide Rails
- The locking mechanism can only take effect when the drawer is fully closed or fully opened.
- Due to different usage scenarios, the product does not contain screws. You can buy M4 screws yourself.
- When installing, please push the inner ball bearing to the top of the slide rail first, then connect with the slide rail, and finally complete the installation.
- When you have problems during the transportation of the product or after receiving the product, you can write to us, we have a professional after-sales team, just to bring you the best shopping experience.
Your order will be shipped from our factory, with a processing time of 1-2 days and a shipping time of 5-7 days. Since this is an international shipment, you will need to pay the corresponding customs duties and import taxes. These fees will be determined according to the customs regulations of your country and may include duties, value-added tax (VAT), and other potential import charges. The exact amount will be assessed by your local customs when the goods arrive and will be payable by you upon delivery. Please contact your country's customs office or relevant authorities in advance to understand the specific fees and procedures, ensuring a smooth receipt of your order.
Product Video
Product Advantages

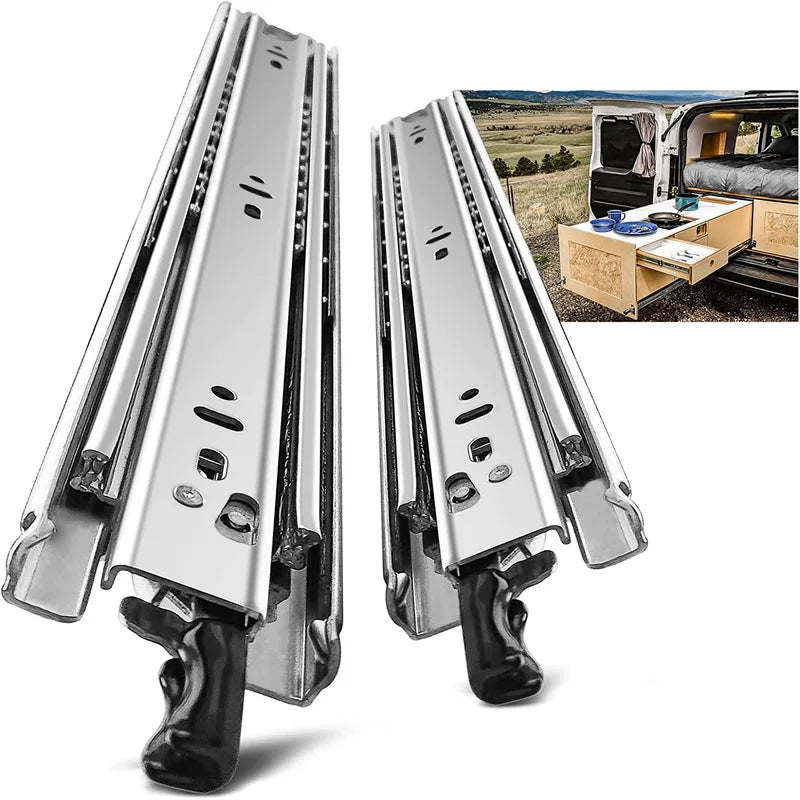

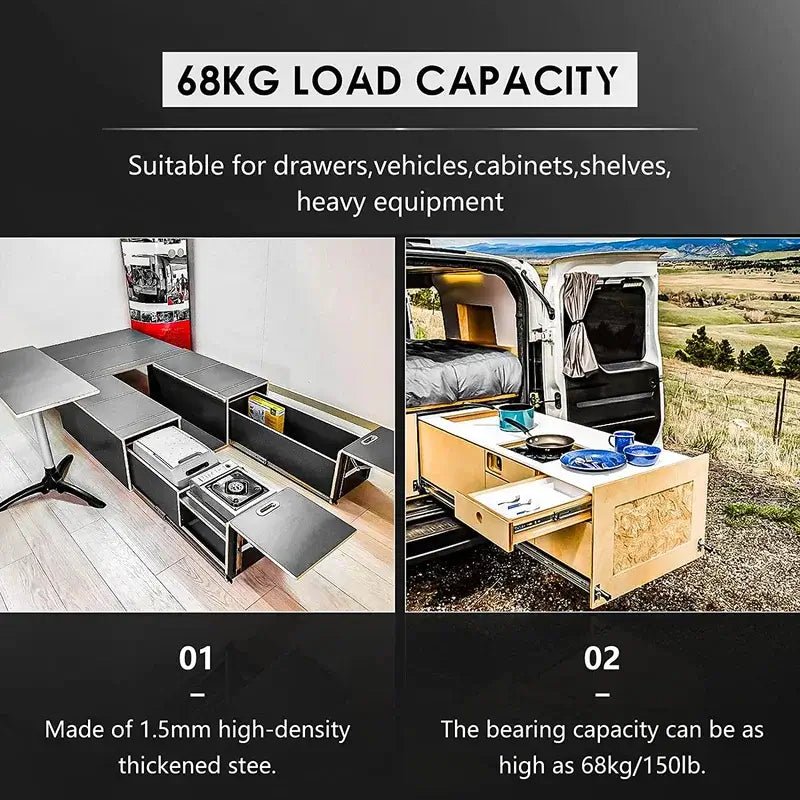

The heavy-duty drawer runners with locks can bear a maximum load of 68KG and can bear the weight of one adults. They are suitable for application scenarios such as telescopic beds, RV magic boxes, and industrial drawers.
Packaging Process
In the product packaging, for locked slide rails, we will have a lock protection cover to protect the lock and avoid damage to the drawer runners. Secondly, we will also provide screws for some special models of slide rails.
Transportation Policy
We have an overseas warehouse in England. The time from purchase to door-to-door delivery of products is about 3-5 working days.
